DIY Carbon Fibre Wing Installation: A Guide to Installing the TR87 Wing on Your G87 M2.
Welcome to your ultimate guide on DIY carbon fibre wing installation, specifically tackling the G87 M2 TR87 wing installation process. This comprehensive how-to blog post will walk you through every step, ensuring a seamless and professional-looking result for your prized M2.
Unboxing the TR87 Kit: First Glimpse of Performance
Begin by unboxing the TR87 kit, showcasing the sleek TRE-branded box. Inside, you'll find the lightweight pre-preg carbon fibre wing, meticulously crafted for the G87 M2. Take a moment to appreciate the design features, like the wing plate echoing the roof's double bubble and the angular M plates complementing the M2's wide stance.
Understanding the Hardware: Tools for Precision
Next, explore the hardware kit, highlighting crucial components like the adjustable legs with dedicated road and track settings. The branded markings on the legs signify each mode, allowing you to customize the wing's downforce based on your driving needs – reduced drag for the streets and enhanced downforce for the track.
Necessary Tools for Installation: Be Prepared
Before diving in, ensure you have the necessary tools for a professional-grade installation. From a trim removal tool to a hole punch, drill bit, hole saw, ratchet, and torx bits, each tool plays a vital role. Gather everything beforehand to avoid unnecessary pauses during the process.
Pre-Installation Preparation: Setting the Stage
Before tackling the installation itself, remove the OEM spoiler if present. Our dedicated video tutorials can guide you through this step. Once the spoiler is gone, verify the accuracy of the templates by constructing the wing and ensuring proper alignment.
1. Assemble the wing: Building the Foundation
Assemble the wing itself, following the directional markings on the brackets. Attach the wing legs to the blade, taking care to align the slanted edge of the brackets towards the front. This step sets the foundation for perfect placement of the TR87 wing.
2. Fit the template: Precision Placement
Cut the supplied templates and place them carefully onto your G87 M2's boot, aligning them with the designated areas. Position your assembled TR87 wing onto the template, ensuring symmetrical alignment and measurements. Once satisfied, tape down the template, remove the wing, and use it to mark the hole punch points for mounting.
3. Drilling the boot lid: Making Way for Performance
Using the marked points on the template, punch holes through the boot lid with the provided tool. Remove the template and use a pen to mark the areas for drilling. Start with a 2mm drill bit for pilot holes, applying gentle pressure and letting the drill do the work. Then, use a 6mm drill bit to widen the holes, again maintaining control and avoiding excessive force. Remember, the holes near the taillights require double-layer drilling with the same controlled approach.
Utilize a hole extender to achieve the 10mm diameter needed for the mounting bolts. Once done, blow away any metal shavings from the boot.
Utilising a hole extender to achieve a 10mm hole for the mounting bolts. Once you've blown away the metal shard on the boot.
Lift the boot and remove all pop clips to release the boot liner.
Finally, carefully use a 22mm hole saw to drill through the inner metal sheet without puncturing the outer layer. Placing a towel inside the boot is recommended to catch any metal shavings.
4. Bolting the Wing in Place: Securing Performance
Begin bolting the wing by securing the bottom bolts first. With assistance, carefully tighten all bolts to ensure a secure fit. Handle the bolts with caution to avoid any mishaps.
5. Final Steps and Tightening: The Finishing Touches
Complete the installation by thoroughly tightening all remaining bolts. Double-check everything for secure fastening. Reinstall the boot liner and finalize the process by tightening all exterior wing bolts.
Conclusion: Your Upgraded M2 Awaits

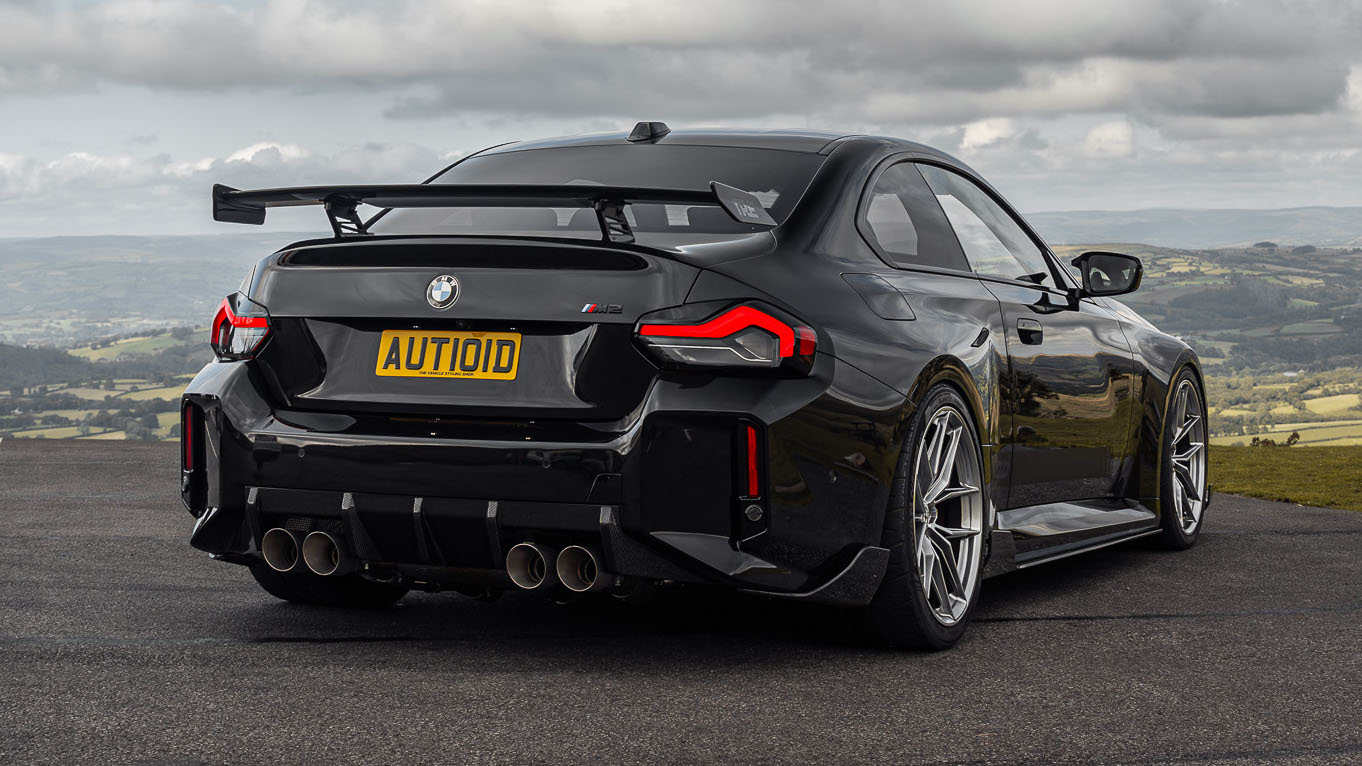

Congratulations! You've successfully installed the TR87 carbon fibre wing on your G87 M2. The sleek and aerodynamic design not only enhances the visual appeal but also contributes to improved performance. If you have any questions or need further assistance, don't hesitate to contact our customer service team (details provided in the video description). Enjoy the upgraded look and feel of your M2, and stay tuned for more exciting content.
